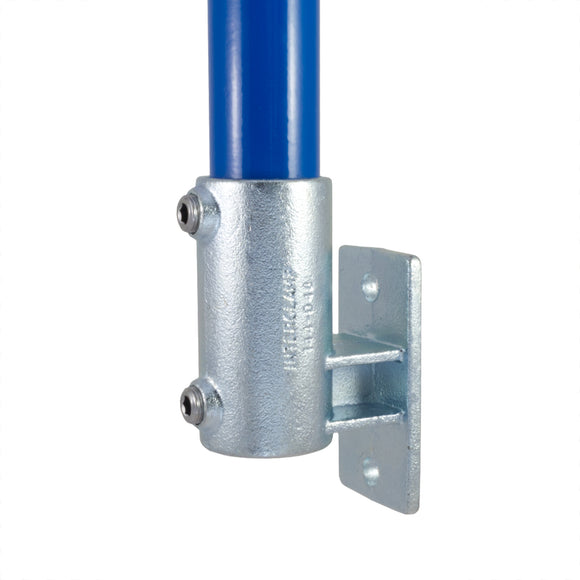

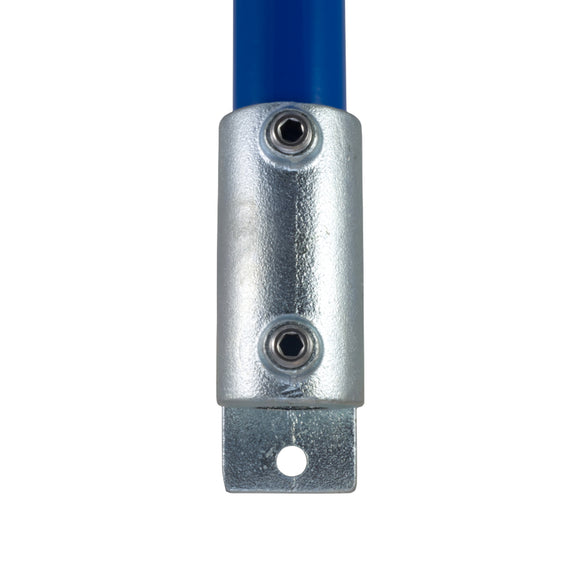

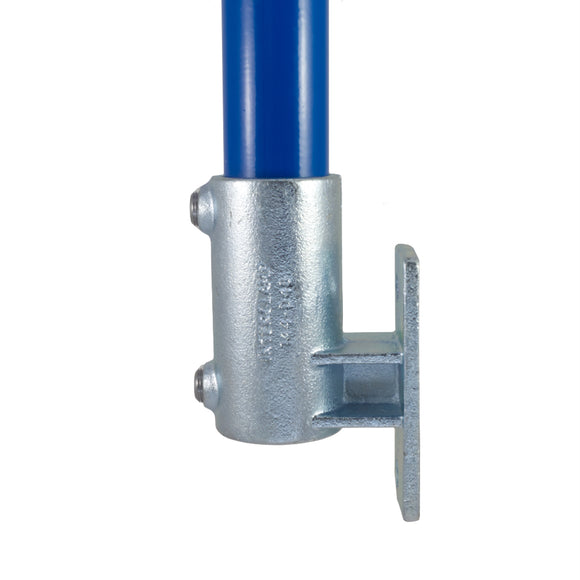

Railing Side Support - Vertical for Galvanised Pipe (Interclamp Code 144)

$26.27 AUD

Tax includedShipping calculated at checkout

Available Now!

Railing Side Support - Vertical for Galvanised Pipe (Interclamp Code 144)

This palm-type fitting is often used to attach guardrail uprights to walls, staircases and ramps. In standard form, the tube cannot pass through the bottom of the fitting, although the fitting may be modified to accommodate this at extra cost.

N.B. Access to one of the fixing holes is limited and may restrict the length and type of fixing that may be used. Depending on load requirements, type 145 may sometimes be used as an alternative.

Qty: 1
Finish: Galvanised
Brand: Interclamp®
Interclamp code: 144

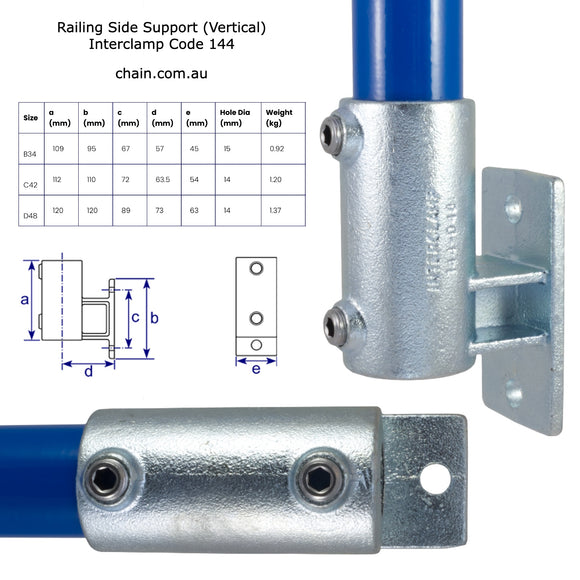

Sizes available:
• B34 | Railing Side Support - Vertical for 34mm Galvanised Pipe Weight: 0.92kg
• C42 | Railing Side Support - Vertical for 42mm Galvanised Pipe Weight: 1.2kg
• D48 | Railing Side Support - Vertical for 48mm Galvanised Pipe Weight: 1.37kg

Application: This Upright Side Support - Vertical Base - for 42mm Galvanised Pipe fitting can be used in many different commercial, domestic and industrial applications.
